Lonsdor K518 SKE-LT Emulator Key Binding Guide

Insert battery 2032 to emulator keys. All 4 emulator keys should be Binded with Lonsdor K518.



Turn on K518

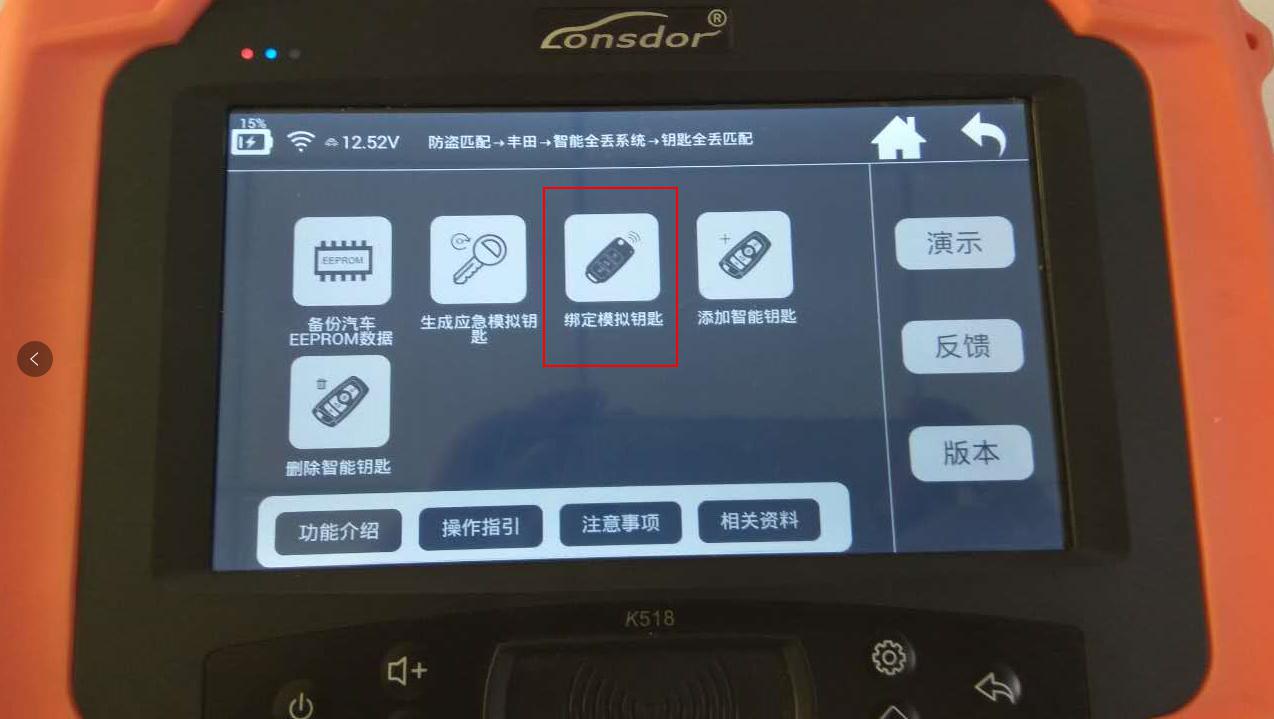

Select Toyota-> All smart keys lost-> Bind emulation key

Lonsdor K518 Emulator Key Binding Guide-1 Lonsdor K518 Emulator Key Binding Guide-2 Lonsdor K518 Emulator Key Binding Guide-3



This function can bind SKE-LT series emulator keys to lonsdor k518ise host.

Such operation is required when using the SKE-LT series emulator keys.

Lonsdor K518 Emulator Key Binding Guide-4

Place the emulator key into K518 key slot

Lonsdor K518 Emulator Key Binding Guide-5

Press the button on the emulator, green indicator tuns on

Lonsdor K518 Emulator Key Binding Guide-6 Lonsdor K518 Emulator Key Binding Guide-7 Lonsdor K518 Emulator Key Binding Guide-8

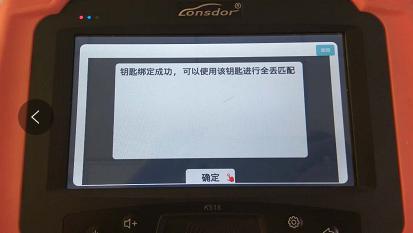

emulator keys with Lonsdor K518ise success,and you can program all keys lost with the emulator key.

TIPS:If a key fails to bind, switch the key more than three times to re-bind, click the button to open, press the button a few seconds off
